Shaker Screen
source：西安華揚油氣設備有限公司 time：2017-11-10
| API Number | D100(mm）/D100(microns） | API Number | D100(mm）/D100(microns） |
| API 20 | ＞780.0 To 925.0 | API 120 | ＞116.5.0 To 137.5 |
| API 30 | ＞550.0 To 655.0 | API 140 | ＞98.0 To 116.5 |
| API 35 | ＞462.5 To 550.0 | API 170 | ＞82.5 To 98.0 |
| API 40 | ＞390.0 To 462.0 | API 200 | ＞69.0 To 82.5 |
| API 50 | ＞275.0 To 390.0 | API 230 | ＞58.0 To 69.0 |
| API 60 | ＞213.0 To 275.0 | API 370 | ＞49.0 To 58.0 |
| API 70 | ＞196.0 To 213.0 | API 325 | ＞41.5 To 49.0 |
| API 80 | ＞165.0 To 196.0 | API 400 | ＞35.0 To 41.5 |
| API 100 | ＞137.5 To 165.0 |

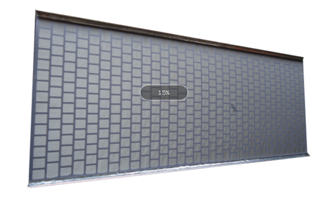

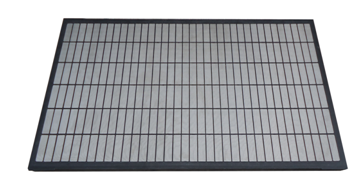

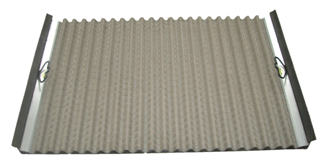

Shaker screen is mainly divided into frame screen(wave screens and flat screen),hook strip screen(wave screens and flat screen),hook strip soft screen.Huayang Oil & Gas do not only make their own screen, can also be customized according to the requirements. Same to foreign brands, D series, S series and B series vibration screen.
