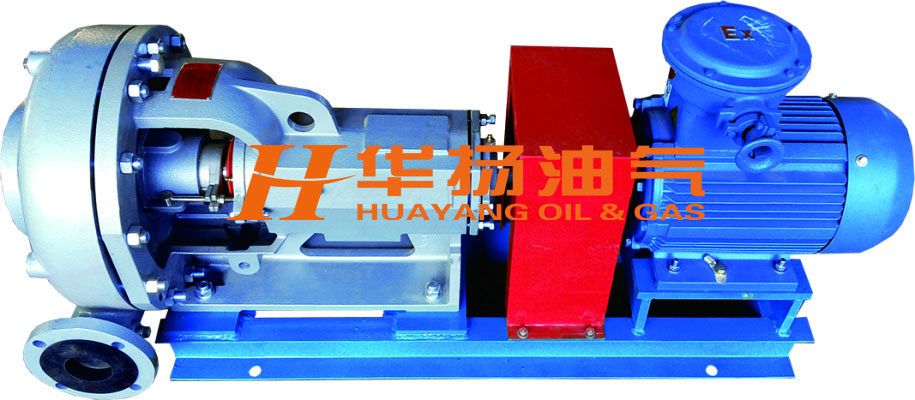

Sand pump
source：西安華揚油氣設(shè)備有限公司 time：2017-11-10
| Model |
Flow rate |
Head | Impeller Diameter | Power |
Electric System |
Ex Standard |
Weight |
Dimension |
| HYSB8×6-14J | 320?/h | 40m | 14in | 75kW | 50HZ | ExdIIBt4 / IECEX / A-TEX | 1096kg | 1968×650×1017mm |
| HYSB8×6-12J | 12in | 60HZ | ||||||
| HYSB8×6-13J | 275?/h | 35m | 13in | 55kW | 50HZ | 987kg | 1894×650×957mm | |
| HYSB8×6-11J | 11in | 60HZ | ||||||
| HYSB6×5-13J | 200?/h | 35m | 13in | 45kW | 50HZ | 786kg | 1811×558×858mm | |
| HYSB6×5-10J | 10in | 60HZ | ||||||
| HYSB6×5-12J | 150?/h | 30m | 12in | 37kW | 50HZ | 771kg | 1786×558×858mm | |
| HYSB6×5-9J | 9in | 60HZ | ||||||
| HYSB5×4-13J | 120?/h | 35m | 13in | 30kW | 50HZ | 696kg | 1696×568×805mm | |
| HYSB5×4-11J | 11in | 60HZ | ||||||
| HYSB5×4-12J | 90?/h | 30m | 12in | 22kW | 50HZ | 583kg | 1648×568×800mm | |
| HYSB5×4-10J | 10in | 60HZ | ||||||
| HYSB4×3-13J | 65?/h | 35m | 13in | 18.5kW | 50HZ | 561kg | 1595×505×800mm | |
| HYSB4×3-12J | 12in | 60HZ | ||||||
| HYSB4×3-12J | 55?/h | 28m | 12in | 15kW | 50HZ | 482kg | 1550×505×755mm | |
| HYSB4×3-10J | 10in | 60HZ | ||||||
| HYSB4×3-11J | 45?/h | 25m | 11in | 11kW | 50HZ | 464kg | 1510×505×755mm | |
| HYSB4×3-9.5J | 9.5in | 60HZ | ||||||
| HYSB3×2-10J | 30?/h | 20m | 10in | 7.5kW | 50HZ | 380kg | 1398×490×717mm | |
| HYSB3×2-9J | 9in | 60HZ |
Features and Benefits：
Alloy cast iron for pump body,longer usage life.
Precision casting technology immensely reduce the incidence of defects.
Mechanical seal and Asbestos seal.
Imported SKF bearing and FKM oil seal.
Alloy cast iron for pump body,longer usage life.
Precision casting technology immensely reduce the incidence of defects.
Mechanical seal and Asbestos seal.
Imported SKF bearing and FKM oil seal.
